Contactors, Starters and Protective Relays
Contactors and Overload Relays are suitable for a large variety of applications in building and in industry such as motor control, heating and ventilating, air conditioning, pumping, lifting equipment, lighting, process power factor correction
Some application of contactors :-

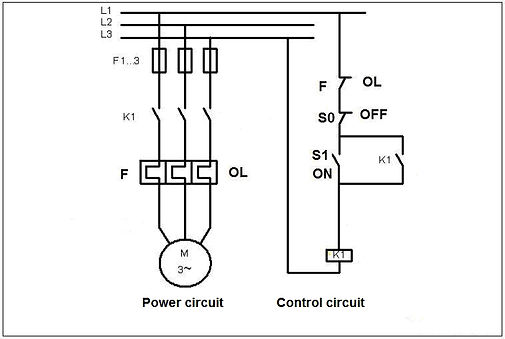

I- Power & control circuit
II-Operation
1 - When Press S1 (start pushbutton)
2 - Contactor k1 operate ,then contact k1 will be normally close
3 - Motor will operate ,until press S0 (stop pushbutton).
III-PLC ladder diagram
I- Power & control circuit
II-Operation
1 - When Press S3 or S4 (start pushbutton)
2 -Contactor k1 operate ,then contact k1 will be normally close
3 - Motor will operate, until press S1 or S2 (stop pushbutton).
III-PLC ladder diagram

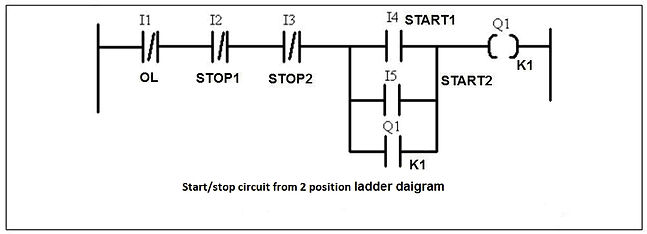

2 - Start/stop circuit from 2 position
3 - Reverse motor with stop circuit
I- Power & control circuit
II-Operation
1 - To operate the first direction Press S2 (start pushbutton) ,Contactor k1 operate ,then contact k1 will be normally close Motor will operate in first direction.
2 -To operate the second direction press S1 (Stop pushbutton) ,Contactor k2 operate ,
then contact k2 will be normally close Motor will operate in second direction.
III-PLC ladder diagram
II-Operation
A - When press S1 (Start pushbutton) ,k3 will operate
and then contact k3 will be normal close

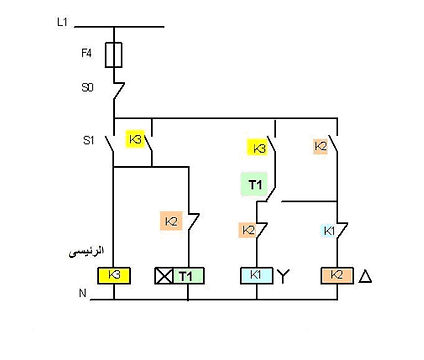

B - timer T1 & contactor K1 will operate motor
operate in stare mode
C - after a period of time ,contact t1 became normally close
then contactor k2 will operate motor operate in delta mode
until pressing S0 (stop pushbutton)
III-PLC ladder diagram
1 - Start/stop circuit

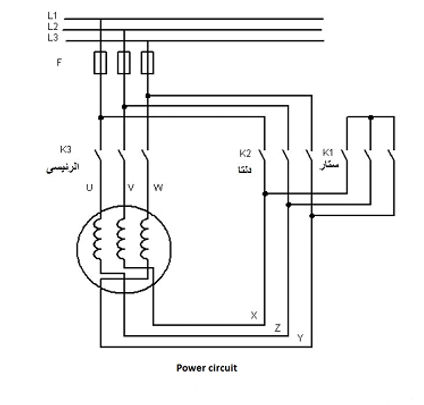

4 - Star/Delta Circuit
